Water Pp Filter Cartridge For Water Treatment Purification

PP filter cartridge use food grade polypropylene as raw material with the process of hot melting spray,spray traction winding.It is constructed of loosened layer,compacted layer and precise layer to ensure high efficiency filtration performance.

Function:It can remove some impurities like suspended substances,particles and rust effectively.

Type: PP melt blown filter cartridge(PPF),PP string wound filter cartridge.PP pleated filter cartridge.

What’s the PP filter cartridge?

PP filter cartridge is called Sediment filter cartridge, also called PP melt-blown filter, it is made of non-toxic and tasteless Polypropylene particles, after heating melting, spinneret, traction, accept forming to be tubular filter element. Because the main raw material is Polypropylene, that is why called PP melt-blown filter cartridge, also pp spun filter cartridge.

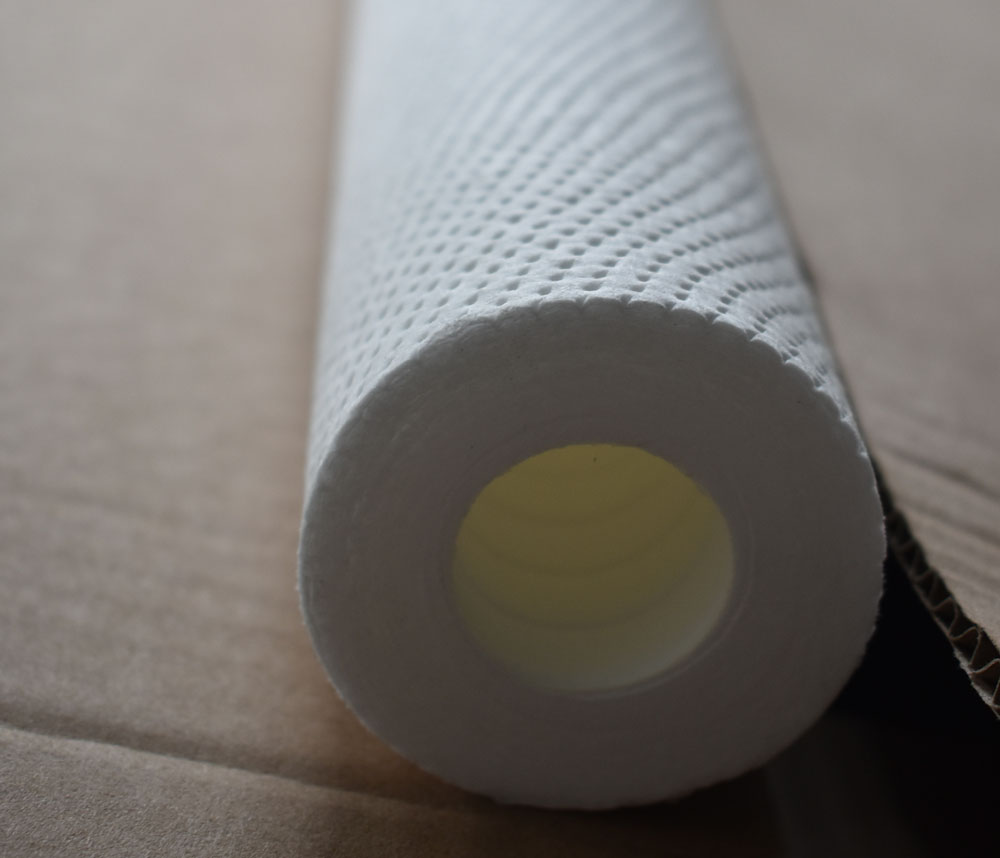

The Structure of PP purifier filter cartridge is the outer fiber thick and loose. the inner fiber fine, the inner layer of the gradual diameter of the tight structure, like the below picture. Which has the characteristics of high porosity, high interception, large adsorb pollution, large flow rate and low pressure drop.

"/
"/

What’s the Feature of the PP filter cartridge?

The Sediment filters cartridge not only used in water purification, also has excellent chemical compatibility, suitable for strong acid, strong base and organic solvent filtration. main remove dirt, debris, rust, sand, silt, and all other suspended solid particles from the water. Strong capacity to absorb pollution, long service life, low cost.

How’s does the PP filter cartridge work?

The PP water purifier cartridge is only element, can’t work with fix with water filter housing, refer to the following picture.

"/

Where to use the PP filter cartridge?

The PP filter cartridge is exact water purifier cartridge use for food, beverage pretreatment, also commercial and industrial processes, and operations; residential the whole house purification; the prefilter of the reverse osmosis system and Ultrafiltration system. the PP water filter cartridge are the first line of defense against dirt and debris polluting your water.

How to choose the PP water filter cartridge?

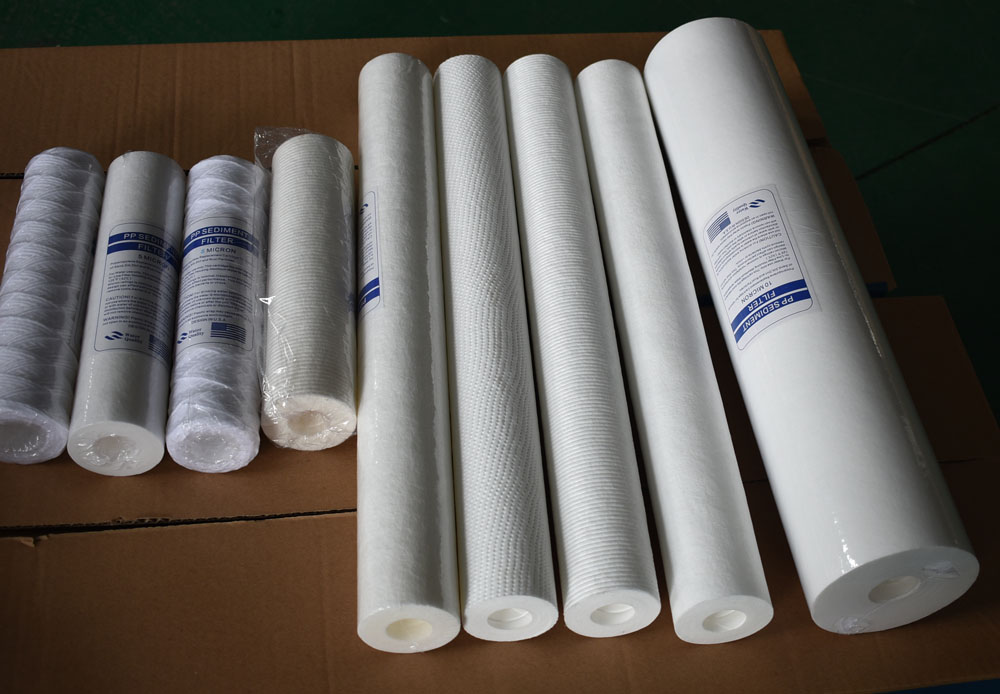

  • Length: 5’’,10’’,20’’,30’’,40’’,50’’,60’’
  • Diameter:2.5’’ ,4.5’’
  • Flow capacity: 0.5m3/hr, 1m3/hr ,2m3/hr ,3m3/hr
  • Filter type:
  • Micron rating: 0.5micron,1micron,5micron, 10micron,20micron ,50micron etc. .



Applications for sediment filters include:

Pharmaceutical industry: Pre-filtration of all kinds of injection, liquid medicine and injection bottle water, large infusion and pre-filtration of antibiotics and traditional Chinese medicine injections.

Food industry: Filtration of alcohol, beverage and drinking water.

Electronic industry: Prefiltration of pure water and Ultra-pure water.

Petroleum and chemical industry: all kinds of organic solvents, acid, alkali liquid filtration. Oilfield water filtration.

Detailed Introduction

Filter Media

Polypropylene

Length

10″,20″,30″,40″,

Micron Rating

1, 5, 10, 20,25,30, 50, 75, 100 μm

Inside Diameter

0.8″(20mm), 0.9″(23mm), 1″(26mm),
1.1″(28mm), 1.2″(30mm), 1.3″(33mm), 1.4″(36mm)

 Outside Diameter

2.36″(60mm),2.4″(61mm), 2.5″(63mm), 2.55″(65mm)

Core

PP

Gasket/O-ring

Silicone, EPDM, Viton

End Cap

Flat ,222 O-Ring,226 O-Ring,Fin



1. In order to ensure that the water purifier products meet the use needs of customers, the installation personnel shall ensure that the inlet water quality, inlet pressure, inlet flow and water temperature of the water purifier meet the requirements in the product performance parameter table. If the inlet water quality is not municipal tap water, a pre filtration device needs to be added in front of the water purifier. If the inlet pressure is too high (more than 3kg), a pressure reducing valve needs to be installed in front of the water purifier. If the inlet pressure is too small (less than 1kg), a booster pump needs to be installed in front of the water purifier. When the water purifier needs to be installed in front of the water heater and other thermal devices, it shall be ensured that the installation position of the water purifier is lower than that of the water heater, so as to prevent the steam in the water heater from entering the water purifier and damaging the filter element of the water purifier.
2. All pipelines, joints, taps and other water related accessories on the water purifier shall comply with national health standards.
3. Please do not install it outdoors in northern areas to prevent freezing crack of the super filter element and direct sunlight.
4. Do not use excessive force when tightening the threaded joint during installation to prevent the thread of the joint from sliding.
